Built-to-spec lamination & multilayer system for fabricators who need repeatable yield and predictable cycle times.

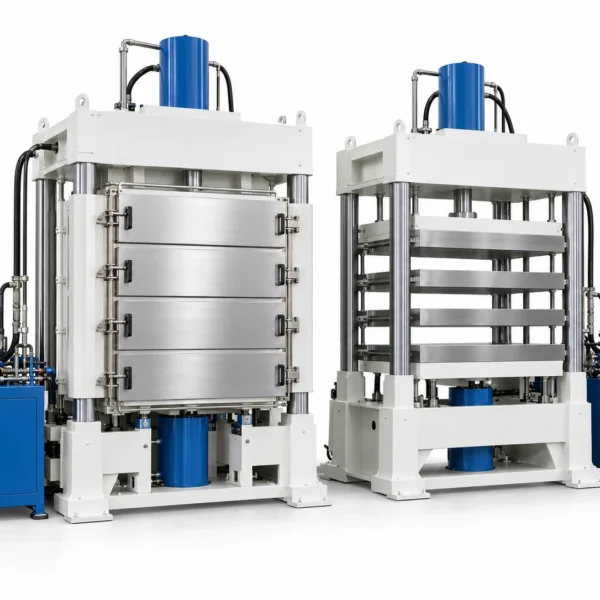

View detailsThe Hot and Cold Lamination Press (One Set Each) (WET-LM-05) is a production-grade lamination & multilayer system. Rather than a one-size-fits-all unit, it is built to a specification confirmed with your team — panel handling, control software, throughput, and material compatibility are all set to your mix.
Where the Hot and Cold Lamination Press (One Set Each) Fits in the Process
In a PCB line the Hot and Cold Lamination Press (One Set Each) sits in the lamination & multilayer area. Correct integration with the steps before and after it is what protects overall yield, cycle time, and cost per panel, so it is specified as part of the wider flow rather than in isolation.
Design Highlights
- Supplied as inline / automatic, with options for line integration.
- Stainless-steel wetted parts and chemically resistant construction where the process requires it.
- Safety interlocks, alarms and guarding designed for a production environment.
- Designed for low maintenance, fast changeover and high equipment uptime.
- Programmable temperature and pressure profiles for void-free lamination.
Common Use Cases
Used to bond inner layers into multilayer and HDI stacks for telecom, computing and automotive boards.
Configuration and Ordering
The Hot and Cold Lamination Press (One Set Each) can be supplied as a standalone unit or built into an automated line. Panel-size handling, control software, throughput, and material compatibility are configured to your production mix. As a configured-to-order system, the specification is finalized with our engineers before quotation.
Enquire About the Hot and Cold Lamination Press (One Set Each)
Let us know what the Hot and Cold Lamination Press (One Set Each) needs to do on your line. We will confirm the configuration, throughput, and price, and outline how it integrates with the surrounding stages.
Frequently Asked Questions
What is the maximum panel or workpiece size for the Hot and Cold Lamination Press (One Set Each)?
This configuration is rated for a maximum panel size of 610 x 610 mm. Larger or thinner stock can usually be accommodated with tooling changes — confirm the exact window for your job before ordering.
How is the Hot and Cold Lamination Press (One Set Each) controlled and operated?
Control is handled by PLC + HMI touchscreen. Operators set recipes through the interface, and process values are logged for traceability and repeatability.
Can the Hot and Cold Lamination Press (One Set Each) be customised for our process?
Yes. Conveyor width, tooling, control options, and the surrounding handling can be adapted to your panel size, throughput target, and facility constraints. Share your specification and we will propose a configuration.
Which materials or board types does the Hot and Cold Lamination Press (One Set Each) support?
Supported board types include Rigid, multilayer, HDI (flex / rigid-flex optional). Other substrates can often be qualified with a short process trial — send a sample and we will confirm.
