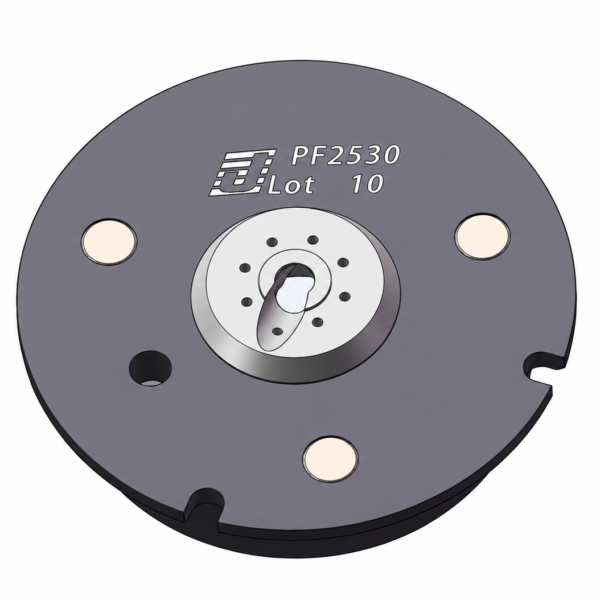

View detailsThe Excellon Pressure Foot Disk Insert PF2530 fits Excellon PCB drilling and routing machines. As a specialist supplier of PCB machine spares, we keep it in our Pressure Feet & Brushes stock and ship it worldwide by express, with technical support to confirm compatibility before you order.
What the Excellon Pressure Foot Disk Insert PF2530 Does
Pressure feet, bushes and brushes hold the panel flat around the tool and extract chips and dust. A worn foot or brush causes burrs, entry-side damage and poor dust extraction.
Product Details
Model
Excellon PF Disck Insert PF2530
Condition
NEW
Application
for Excellon Machine
Lead Time
3-5 working days
Other
More
Ordering & Delivery
- Trade Term: FOB Shenzhen USD by T/T in advance.
- Discount is allowed against your quantity.
- OED/OEM is accepted.
- Delivery will be carried out by Express or your requirement.
- Lead Time: 2~7 days after payment.
Frequently Asked Questions
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: If machines, it will be about 10~15 working days. If spares, it will be about 2~3 working days after payment.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment
When to Replace It
- Burrs or lifted copper on the entry side
- Dust left on the panel after drilling
- Bristles worn, uneven or melted
- Cracked or deformed foot body
How to Confirm Compatibility
Before ordering, please check or send us:
- Machine brand and spindle model
- Outer diameter and bush hole size
- Brush length and bristle type
- Vacuum fitting compatibility
Looking for complete machines? See our Drilling & Via Formation and Profiling & Routing.
Technical Questions
Do you supply other spare parts for the same machine?
Yes. We supply collets, spindles and shafts, air bearings, pressure feet and brushes, cylinders, sensors, tool magazines, drill and router bits, and backup and entry boards for PCB drilling and routing machines.
Is the Excellon Pressure Foot Disk Insert PF2530 new or refurbished?
The item is supplied in new condition. Every part is inspected before it is packed.
How fast can the Excellon Pressure Foot Disk Insert PF2530 be delivered?
Spare parts in stock usually ship within 2–7 days after payment from Shenzhen, China, by international express (DHL, FedEx, UPS or your own forwarder).
What information do you need to quote the Excellon Pressure Foot Disk Insert PF2530?
Please provide: machine brand and spindle model, outer diameter and bush hole size, brush length and bristle type, vacuum fitting compatibility. Photos of the installed part also help.
