Copper & Brass FeCl₃

Chemical Etching Formula
C1100 T2 copper with FeCl₃

The FeCl₃ chemistry is a proven formula for C1100 T2 copper. This reference sheet lists the concentration (36 °Bé), specific gravity (1.340), bath temperature (44°C), and the full range of conveyor speeds and feature tolerances that result. Use it to size your process before committing to a production trial.

Formula Summary

The table below summarizes every parameter that defines this etching formula. Values listed as ranges scale with sheet thickness across the supported band.

FeCl₃ Etchant System
36 °Bé Concentration
1.340 Specific Gravity
44 °C Bath Temperature
Half etch (single-sided) Etch Depth Type
0.05-0.3 mm Thickness Range
0.15 mm Typical Thickness
0.2-2.51 m/min Conveyor Speed Range
0.66 m/min Typical Speed
60-360 μm Min Hole Ø Range
100-300 μm Min Line Width Range
9-53 μm Undercut Range
2.85 Etch Factor (EF)
98.5% Typical Yield (98.2-98.7%)

Why FeCl₃ for C1100 T2 copper?

Ferric-chloride-based formulas are the industrial workhorse for ferrous, nickel, and copper-bearing alloys like C1100 T2 copper. The Fe³⁺ ion oxidizes the metal surface; where HCl is present it regenerates dissolved species and stabilizes chloride concentration. The result on C1100 T2 copper is anisotropic etching with predictable undercut and an easily regenerated spent bath.

Process Window & Bath Control

The process window for this FeCl₃ formula centres on 44°C and 36 °Bé. Conveyor speed spans 0.2-2.51 m/min over the 0.05-0.3 mm thickness band; the typical operating point is 0.66 m/min. Every 5°C drop in bath temperature requires roughly a 30% reduction in conveyor speed to hold the same etch depth, so temperature stability is the single biggest lever on consistency.

Design Rules & Tolerances

Feature sizes scale with sheet thickness. For this formula the minimum hole diameter ranges 60-360 μm and the minimum line width ranges 100-300 μm across the 0.05-0.3 mm band, following the industry 1.2× (hole) and 1.0× (line) thickness rules. Single-side undercut ranges 9-53 μm, and the etch factor is about 2.85. Size your photomask by subtracting twice the expected undercut from each finished feature dimension.

Design Rule Summary
• Minimum hole diameter range: 60-360 μm
• Minimum line width range: 100-300 μm
• Single-side undercut range: 9-53 μm
• Typical etch factor (EF): 2.85

Yield & Production Economics

This formula delivers a typical yield of 98.5% (range 98.2-98.7%). At that rate, per-part economics are driven mostly by fixed photomask and setup cost for small batches and by sheet utilisation for large runs. The chemistry itself does not change with quantity, so the same recipe serves prototype and production volumes.

Typical Applications

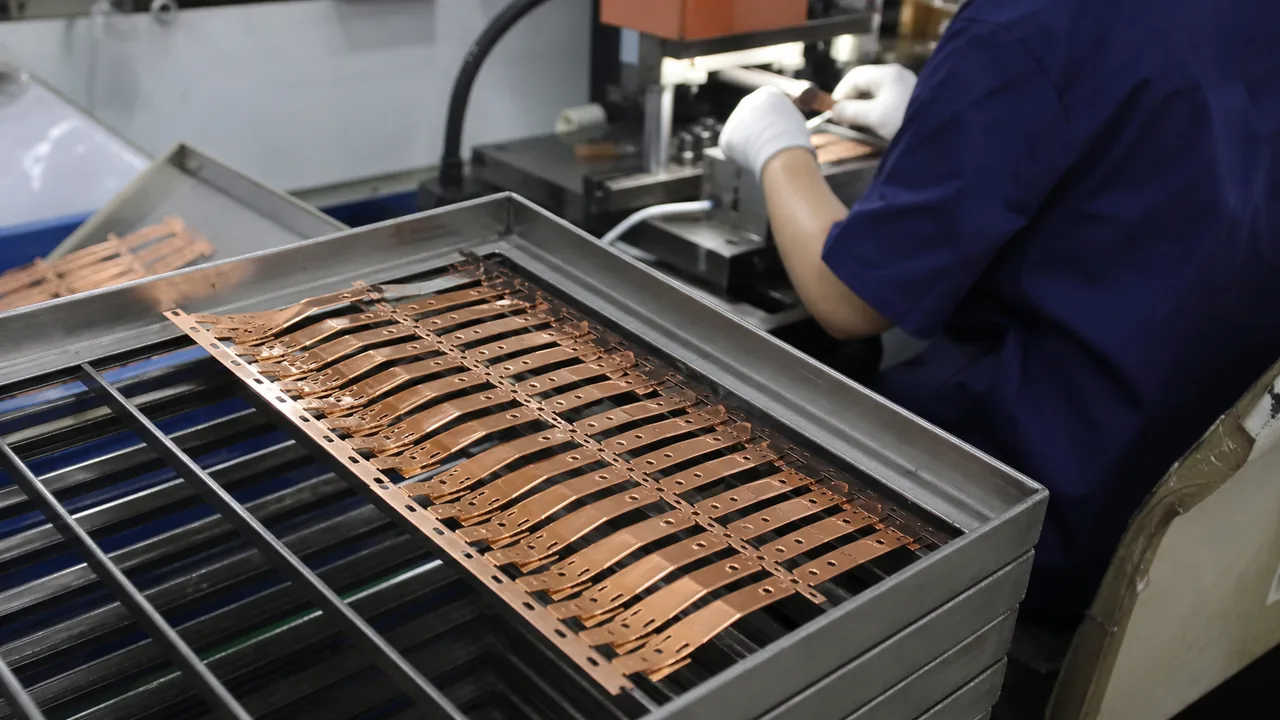

Typical applications for C1100 T2 copper processed with FeCl₃ include lead frames, busbars, flexible heater elements, RF gaskets, and precision electrical contacts. The formula's tolerance band and yield make it well suited to medium-to-high-volume precision flat parts.

More Copper & Brass Formulas

Other formulas in the same material family.

C1020 OF Copper FeCl₃ Through etch (double-sided) C1100 T2 copper FeCl₃ Through etch (double-sided) C1100 T2 copper FeCl₃ Through etch (double-sided) C1100 T2 copper FeCl₃ Through etch (double-sided) C1100 T2 copper FeCl₃ Through etch (double-sided) C1100 T2 copper FeCl₃ Half etch (single-sided)

Frequently Asked Questions

Minimum producible hole diameter ranges 60-360 μm across the 0.05-0.3 mm thickness band, following the 1.2× material-thickness design rule. The smallest holes are only available on the thinnest stock; attempting holes below the floor for a given thickness causes yield to drop sharply.
